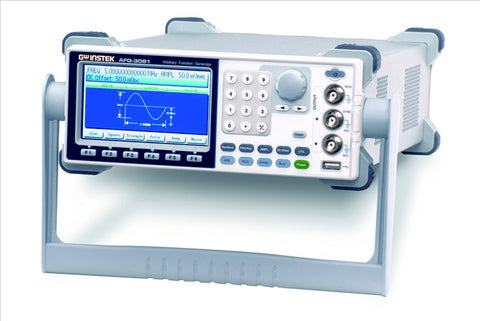

GW AFG 3051 Arbitrary waveform generator
$0.00
Product Tags:
-
Wide frequency range from 1uHz to 80/50MHz
-
High 200MSa/s sampling rate
-
16-bit Amplitude Resolution
-
Output from any section of 1M-point-long waveform
-
4.3" high resolution LCD display/on-screen help/Impedance switch
-
Four ways to generate arbitrary waveform: Front Panel Operation
-
CSV file uploading, Direct Waveform Reconstruction (DWR), Arbitrary
-
Waveform Editing PC Software
-
USB, RS-232, GPIB interface support
The AFG-3000 Series is arbitrary waveform generator designed for industrial, scientific research and educational applications. The series comes in bandwidths of 80MHz (AFG-3081) and 50MHz (AFG-3051) with built-in multiple standard waveforms to meet users' diversified needs.
The AFG-3000 Series also provides a high 16 bit resolution, 200MSa/s sample rate and a 1M memory depth for editing arbitrary waveforms directly through the intuitive user interface. The Direct Waveform Reconstruction (DWR) function enables users to directly import waveforms from a GDS-2000 Series oscilloscope to the AFG-3000 via USB host, allowing users to edit waveforms and enhance measurement efficiency.
AFG-3081
|
AFG-3051
|
||||
Waveforms
|
Sine, Square, Ramp, Pulse, Noise, DC, Sin(x)/x, Exponential Rise, Exponential Fall, Negative Ramp
|
||||
Arbitrary Waveforms
|
|||||
ARB Function
|
Built in
|
||||
Sample Rate
|
200 MSa/s
|
||||
Repetition Rate
|
100MHz
|
||||
Waveform Length
|
1M points
|
||||
Amplitude Resolution
|
16 bits
|
||||
Non-Volatile Memory
|
Ten 1M waveforms(1)
|
||||
User define Output Section
|
Any section from 2 to 1M points
|
||||
User define Mark Output
|
Any section from 2 to 1M points
|
||||
Frequency Characteristics
|
|||||
Range
|
Sine
|
80MHz
|
50MHz
|
||
Square
|
|||||
Triangle, Ramp
|
1MHz
|
||||
Resolution
|
1uHz
|
||||
Accuracy
|
Stability
|
±1 ppm 0 to 50℃
|
|||
±0.3 ppm 18 to 28℃
|
|||||
Aging |
±1 ppm, per 1 year
|
||||
Tolerance
|
≦ 1 uHz
|
||||
Output Characteristics(2)
|
|||||
|
|
||||
Amplitude
|
Range
|
10 mVpp to 10 Vpp( into 50Ω)
20 mVpp to 20 Vpp(open-circuit) |
|||
Accuracy
|
± 1% of setting ±1 mVpp
(at 1 kHz,>10 mVpp) |
||||
Resolution
|
0.1 mV or 4 digits
|
||||
Flatness
|
± 1% (0.1dB) <10 mhz="" br="">± 2% (0.2 dB) 10 MHz to 50 MHz
± 10% (0.9 dB) 50 MHz to 70 MHz ± 20% (1.9 dB) 70 MHz to 80 MHz (sinewave relative to 1 kHz) |
||||
Units
|
Vpp, Vrms, dBm,
|
||||
Offset
|
Range
|
±5 Vpk ac +dc (into 50Ω)
±10Vpk ac +dc (Open circuit) |
|||
Accuracy
|
1% of setting + 2 mV+ 0.5% of amplitude
|
||||
Waveform Output
|
Impedance
|
50Ω typical (fixed)
> 10MΩ (output disabled) |
|||
Protection
|
Short-circuit protected
Overload relay auto-matically disables main output |
||||
SYNC Output
|
Level
|
TTL-compatible into>1kΩ
|
|||
Impedance
|
50Ω nominal
|
||||
Sinewave Characteristics
|
|||||
Harmonic Distortion(5)
|
–60 dBc DC~1 MHz, Ampl<3 Vpp
–55 dBc DC~1 MHz, Ampl>3 Vpp –45 dBc 1MHz~5 MHz, Ampl>3 Vpp –30 dBc 5MHz~80 MHz, Ampl>3 Vpp |
||||
Total Harmonic Distortion
|
< 0.2%+0.1mVrms
DC to 20 kHz |
||||
Spurious (non-harmonic)(5)
|
–60 dBc DC~1 MHz
–50 dBc 1MHz~20MHz
–50 dBc+ 6 dBc/octave 1MHz~80MHz
|
||||
Phase Noise
|
<-65dBc typical 10MHz, 30 kHz band
<-47dBc typical 80MHz, 30 kHz band |
||||
Square wave Characteristics
|
|||||
Rise/Fall Time
|
<8 ns="" strong="">(3)
|
||||
Overshoot
|
< 5%
|
||||
Asymmetry
|
1% of period+1 ns
|
||||
Variable Duty Cycle
|
20.0% to 80.0% ≦ 25 MHz
40.0% to 60.0% 25~50MHz 50.0%(Fixed) 50~80MHz |
||||
Jitter
|
0.01%+525ps < 2 MHz
0.1%+75ps > 2 MHz |
||||
Ramp Characteristics
|
|||||
Linearity
|
< 0.1% of peak output
|
||||
Variable Symmetry
|
0% to 100%
|
||||
Pulse Characteristics
|
|||||
Period
|
20ns~ 2000s
|
||||
Pulse Width
|
8ns~ 1999.9s
Minimum Pulse Width:
8nS when FREQ≦50MHz 5% of setting period when FREQ≦6.5MHz Resolution: 1nS when FREQ≦50MHz 1% of setting period when FREQ≦6.5MHz |
||||
Overshoot
|
<5%
|
||||
Jitter
|
100 ppm +50 ps
|
||||
AM Modulation
|
|||||
Carrier Waveforms
|
Sine, Square, Triangle, Ramp, Pulse, Arb
|
||||
Modulating Waveforms
|
Sine, Square, Triangle, Up/Dn Ramp
|
||||
Modulating Frequency
|
2 mHz to 20 kHz
|
||||
Depth
|
0% to 120.0%
|
||||
Source
|
Internal / External
|
||||
FM Modulation
|
|||||
Carrier Waveforms
|
Sine, Square, Triangle, Ramp
|
||||
Modulating Waveforms
|
Sine, Square, Triangle, Up/Dn Ramp
|
||||
Modulating Frequency
|
2 mHz to 20 kHz
|
||||
Peak Deviation
|
DC to 80 MHz
|
DC to 50 MHz
|
|||
Source
|
Internal / External
|
||||
PWM
|
|||||
Carrier Waveforms
|
Square
|
||||
Modulating Waveforms
|
Sine, Square, Triangle, Up/Dn Ramp
|
||||
Modulating Frequency
|
2 mHz to 20 kHz
|
||||
Deviation
|
0% ~ 100.0% of pulse width
|
||||
Source
|
Internal / External
|
||||
FSK
|
|||||
Carrier Waveforms
|
Sine, Square, Triangle, Ramp, Pulse
|
||||
Modulating Waveforms
|
50% duty cycle square
|
||||
Internal Rate
|
2 mHz to 100 kHz
|
||||
Frequency Range
|
DC to 80 MHz
|
DC to 50 MHz
|
|||
Source
|
Internal / External
|
||||
SWEEP
|
|||||
Waveforms
|
Sine, Square, Triangle, Arb
|
||||
Type
|
Linear or Logarithmic
|
||||
Direction
|
Up or Down
|
||||
Start F / Stop FREQ
|
100 uHz to 80 MHz
|
100 uHz to 50 MHz
|
|||
Sweep Time
|
1 ms to 500 s
|
||||
Trigger
|
Single, External, Internal
|
||||
Marker
|
Falling edge of Mark signal
(Programmable frequency) |
||||
Source
|
Internal / External
|
||||
BURST
|
|||||
Waveforms
|
Sine, Square, Triangle, Ramp
|
||||
Frequency
|
1 uHz to 80 MHz(4)
|
1 uHz to 50 MHz(4)
|
|||
Burst Count
|
1 to 1000000 cycles or Infinite
|
||||
Start / Stop Phase
|
-360.0∘to +360.0∘
|
||||
Internal Period
|
1 ms to 500 s
|
||||
Gate Source
|
External Trigger
|
||||
Trigger Source
|
Single, External or Internal Rate
|
||||
Trigger Delay
|
N-Cycle, Infinite: 0s to 85 s
|
||||
External Modulation Input
|
|||||
Type
|
for AM, FM, Sweep, PWM
|
||||
Voltage Range
|
± 5V full scale
|
||||
Input Impedance
|
10kΩ
|
||||
Frequency
|
DC to 20 kHz
|
||||
External Trigger Input
|
|||||
Type
|
for FSK, Burst, Sweep
|
||||
Input Level
|
TTL Compatible
|
||||
Slope
|
Rising or falling(selectable)
|
||||
Pulse Width
|
> 100 ns
|
||||
Input Impedance
|
10kΩ,DC coupled
|
||||
Latency
|
Sweep
|
< 10 us (typical)
|
|||
Burst
|
< 100 ns (typical)
|
||||
Jitter
|
Sweep
|
2.5 us
|
|||
Burst
|
1 ns; except pulse,300 ps
|
||||
Modulation Output
|
|||||
Type
|
for AM, FM, Sweep, PWM
|
||||
Amplitude
|
Range
|
≧1Vpp
|
|||
Impedance
|
> 10kΩ typical (fixed)
|
||||
Trigger Output
|
|||||
Type
|
for Burst, Sweep
|
||||
Level
|
TTL Compatible into 50Ω
|
||||
Pulse Width
|
> 450 ns
|
||||
Maximum Rate
|
1 MHz
|
||||
Fan-out
|
≧4 TTL load
|
||||
Impedance
|
50Ω typical
|
||||
Marker Output
|
|||||
Type
|
for ARB, Sweep
|
||||
Level
|
TTL Compatible into 50Ω
|
||||
Fan-out
|
≧4 TTL load
|
||||
Impedance
|
50Ω typical
|
||||
Store/Recall
|
10 Groups of Setting Memories
|
||||
Interface
|
GPIB, RS232, USB
|
||||
Display
|
4.3 inch TFT LCD
480 × 3 (RGB) × 272 |
||||
System Characteristics
|
|||||
Configuration Times
(typical) |
Function Change:
Standard---->102ms Pulse-------->660ms Built-In Arb- >240ms Frequency Change: 24ms Amplitude Change: 50ms Offset Change: 50ms Select User Arb: < 2s for 1M points Modulation Change: < 200ms |
||||
Arb Download Times
(typical) |
Binary Code
|
ASCII Code
|
|||
GPIB / RS-232 (115 Kbps)
|
USB(Device)
|
USB(Host)
|
|||
1M points
|
189 Sec
|
34 Sec
|
70 Sec
|
||
512K points
|
95 Sec
|
18Sec
|
35 Sec
|
||
256K points
|
49 Sec
|
9 Sec
|
18 Sec
|
||
64K points
|
16 Sec
|
3 Sec
|
6 Sec
|
||
16K points
|
7 Sec
|
830mS
|
1340 mS
|
||
8K points
|
6 Sec
|
490mS
|
780mS
|
||
4K points
|
6 Sec
|
365mS
|
520 mS
|
||
2K points
|
5 Sec
|
300mS
|
390 mS
|
||
General Specifications
|
|||||
Power Source
|
AC100~240V , 50~60Hz
|
||||
Power Consumption
|
65 VA
|
||||
Operating Environment
|
Temperature to satisfy the specification : 18 ~ 28∘C
Operating temperature : 0 ~ 40∘C Relative Humidity: ≤ 80%, 0 ~ 40°C ≤ 70%, 35 ~ 40°C Installation category: CAT Ⅱ |
||||
Operating Altitude
|
2000 meters
|
||||
Pollution Degree
|
IEC 61010 Degree 2, Indoor Use
|
||||
Storage Temperature
|
-10 ~ 70∘C, Humidity: ≤70%
|
||||
Dimensions (WxHxD)
|
Bench Top : 265 (W) x 107 (H) x 374 (D)
|
||||
Weight
|
Approx. 4kg
|
||||
Safety Designed to
|
EN61010-1
|
||||
EMC Tested to
|
EN 55011, IEC-61326-1
|
||||
Accessories
|
GTL-110× 1
Instruction Manual×1 Power cord×1 |
||||
(1). A total of ten waveforms can be stored.(Every waveform can composed of 1M points maximum.)
(2). Add 1/10th of output amplitude and offset specification per ∘C for operation outside of 0∘C to 28∘C range (1-year specification). (3). Edge time decreased at higher frequency. (4). Sine and square waveforms above 25 MHz are allowed only with an "Infinite" count. (5). Harmonic distortion and Spurious noise at low amplitudes is limited by a -70 dBm floor. |
